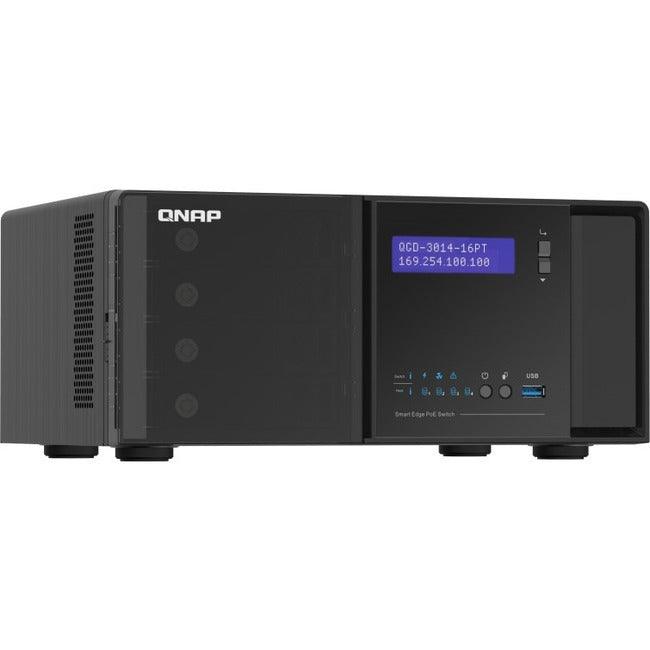

QNAP QGD-3014-16PT Ethernet Switch

SKU QGD-3014-16PT-8G-US
Sold out
Original price $1,871.24
Original price $1,871.24 - Original price $1,871.24
Original price $1,871.24
Current price $1,641.67
$1,641.67 - $1,641.67
Current price $1,641.67

Desktop Smart Edge PoE Switch

Cost-optimized intelligent IP surveillance solution

The QGD-3014-16PT Desktop Guardian PoE managed switch has sixteen 30-watt Gigabit PoE ports, two Gigabit SFP/RJ45 combo ports and two 2.5GbE host management ports. With a dual-processor design including an Intel® Celeron® J4125 quad-core 1.8GHz processor and four 3.5-inch SATA drive bays, the QGD-3014-16PT meets requirements for high-speed transmission, storage space, and virtual machine performance in surveillance applications. Supporting VMs and QTS for versatile applications such as QVR Pro, HBS 3 and QuWAN, the QGD-3014-16PT combines surveillance deployment, video storage computing, remote backup and WAN optimization to create intelligent surveillance infrastructure and remote backup solutions.

Compliant with the IEEE 802.3at PoE+ standard and includes sixteen 30-watt Gigabit PoE ports. Supplies a total power budget of 140 watts to meet the demands of high-powered devices (PDs) and supports smart PoE management.

Provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT staff to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.

Supports up to four SATA SSDs or HDDs.

Supports real-time transcoding and has HDMI 2.0 output for direct 4K 60Hz surveillance video playback.

Supports local, remote and cloud backup; centralizes management; and strengthens 3-2-1 backup planning for disaster recovery.

Directly host containers and virtual machines to run various applications. Flexibly install QuWAN SD-WAN, virtual routers, firewalls for various networking management applications.

Next-Generation Intelligent IP Surveillance and Remote Backup Solution

Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.

Complete Surveillance Infrastructure Deployment for Smart Retail

Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.


  • Features 16 networking ports to easily establish a local network or expand your existing one
  • Cascade to other network devices through the uplink port to expand your local area network
  • Gigabit Ethernet port for ultra-fast network speeds
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Managed switch provides a reliable foundation for your network
  • The desktop installation makes it ideal for deployments outside the wiring closet
